Product Details:
|
| Model Number: | HB6F | NETD: | ≤45mK@25℃ |
|---|---|---|---|
| Spectral range: | 8μm～14μm | Resolution: | 640×512 |
| Frame Rate: | 25Hz | Focal length: | 37.8mm |
| Weight: | ≤1.30kg(including Two 18650 Lithium Batteries ) | Size: | 205×160×70mm |

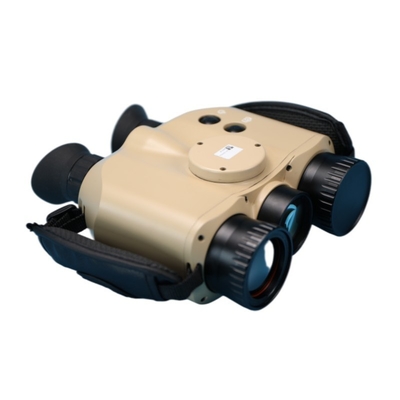

Military Night Vision Telescope Security Monitoring Infrared Thermal Imaging Binoculars
Parameter:
| Detector and lens | |
| Resolution | 640×512 |
| Detector pitch | 17μm |
| NETD | ≤45mK@25℃ |
| Spectral Range | 8μm～14μm |
| Frame Frequency | 25Hz |
| Focal Length | 37.8mm |
| Focus | Manual |
| Low-level-light(CCD)and lens | |
| Resolution | 800×600 |
| Detector pitch | 18μm |
| Frame Frequency | 25Hz |
| Focal Length | 40mm |
| Focus | Fixed |
| Image display | |
| Display | 0.39″OLED, 1024×768 |
| Digital zoom | 2x |
| Image adjustment | Auto＆Manual shutter correction;brightness;contrast;polarity;image magnification |
| Detection and identification range | |
| Detection range | Man 1.7m×0.5m:1200m |
| Vehicle2.3m:1700m | |
| Identification Range | Man 1.7m×0.5m: 400m |
| Vehicle2.3m:600m | |
| Storage of file | |
| Storage of image | BMP |
| Storage of video | AVI |
| Storage card | 32G TF |
| Interface | |
| Video out | Q9 |
| Digital interface | USB |
| Camera Control | RS232 |
| Tripod mounting | Standard,UNC ¼"-20 |
| Others | |
| Range of visual adjustment | -4°～+4° |
| Angle shows | Electronic compass |
| Positioning system | Beidou/GPS |
| Wireless transmission | WiFi |
| Power supply | |
| Battery | Two 18650 chargeable lithium batteries |
| Starting up | Long press about 5s |
| Starting time | About 10s |
| Continuous operation time | ≥3.5h |
| Environmental data | |
| Operating Temperature | -40℃～+50℃ |
| Physical data | |
| Weight | ≤1.30kg(including two 18650 lithium batteries ) |
| Size | 205mm×160mm×70mm |
Features:
1. HB6F binoculars can realize all-weather observation and can be widely used in police affairs, public security, fire rescue, border and coastal defense, wild hunting and other fields.
