Product Details:
|
| Type: | 1-4x Thermal Imaging Night Vision | Size: | 19.2*6.5*7.1 |
|---|---|---|---|
| Weight: | 470g | Effective Visual Distance: | 2000m |
| Operating Voltage: | 5v | Detector Type: | 400*300@17μm |
| Focus: | 25mm | Frame Rate: | 50Hz |
| High Light: | night vision thermal imaging monocular IP66,night vision thermal imaging monocular,25mm compact night vision monocular |
||

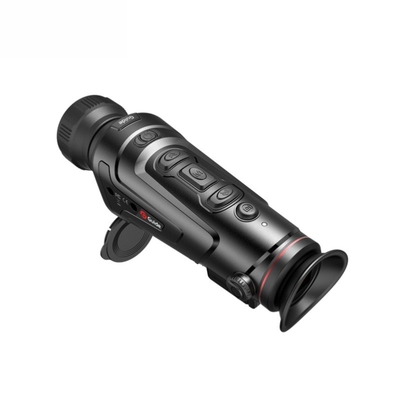

Track IR 25mm Handheld Thermal Imaging Night Visionwith IP66 Waterproof
Product parameters
|
Model
|
TrackIR 25mm
|
TrackIR 35mm
|
TrackIR 50mm
|
|
Detector
|
|||
|
Detector Type
|
400×300 @17μm, VOx
|
||
|
Spectral
|
8μm～14μm
|
||
|
NETD
|
≤50mk
|
||
|
Lens
|
|||
|
Focal Length
|
25mm/F1.1
|
35mm/F1.2
|
50mm/F1.2
|
|
Focusing
|
Manual Focus
|
||
|
FOV
|
15.4°×11.6°
|
11.1°×8.3°
|
7.8°×5.8°
|
|
Display
|
|||
|
Screen
|
1280×960 , 0.4 inch,Color LCOS Display
|
||
|
Eyepiece
|
Monocular, Exit pupil≥10mm, Adjustable diopter-4~＋2
|
||
|
Magnification
|
1.7~6.8
|
2.3~9.2
|
3.3~13.2
|
|
Imaging
|
|||
|
Frame Rate
|
50Hz
|
||
|
Digital Zoom
|
1X~4X (Smooth zoom)
|
||
|
Color Palettes
|
White Hot, Black Hot, Iron Red, Blue Hot, Red Hot
|
||
|
Picture-in-picture
|
Picture-in-picture enlarged image is displayed on the upper left, upper middle or upper right
|
||
|
Functions
|
|||
|
|
Yes
|
Yes
|
Yes
|
|
Video
|
Yes
|
Yes
|
Yes
|
|
Hotspot tracking
|
Yes
|
Yes
|
Yes
|
|
Stadiametric rangefinder
|
Yes
|
Yes
|
Yes
|
|
Wi-Fi/APP
|
Wi-Fi share photo and video, also can controlled by app(IOS & Android)
|
||
|
Power Supply
|
|||
|
Battery Type
|
Internal Li-ion battery (2x18650, 6000mAh)
|
||
|
Working Time
|
≥5h
|
||
|
Interface
|
|||
|
USB
|
TYPE C (USB 2.0 standard ) for charging, data tranmission
|
||
|
Video Output
|
Micro HDMI
|
||
|
External Connection
|
External Connection by a Picatinny rail
|
||
|
Memory Card
|
16 GB
|
||
|
Environmental Characteristics
|
|||
|
Operating Temperature
|
-10°C～50°C
|
||
|
Storage Temperature
|
-30°C～60°C
|
||
|
Encapsulation
|
IP66,1-meter drop test
|
||
|
Certificate
|
UN38.3 (Battery certificate), RoHS, CE, FCC, EAC
|
||
|
Weight & Dimensions
|
|||
|
Weight
|
470g
|
485g
|
535g
|
|
Dimensions
|
192mm×65mm×71mm
|
214mm×65mm×71mm
|
|
|
Package Contents
|
|||
|
Standard
|
Power adapter,USB cable,Micro HDMI cable,Lens cover,Wrist strap,
Shoulder strap,Lining package,Quick Start Guide |
||
|
Optional
|
External Picatinny rail, External screen and etc…
|
||
Product Description
Track IR is new launched handheld thermal imaging monocular designed for professional hunters.
With 1280*960 HD display, it provides adaptable and excellent thermal imaging in any conditions.
Support smooth zoom, built-in stadiametric rangefinder, image quality adjustment, picture-in-picture functions.
At a high frame rate of 50Hz, TrackIR captures sharp thermal imaging throughout dynamic and rapid motion in distance.
TrackIR also supports connecting accessories to realize more functions.
Main Features
* 1280×960 HD display for better comfort of viewing
* >5 hours battery working time * Mobile-friendly APP for Remote Control and Steaming
* User-friendly UI with quick menu, easy to operate
* Multiple Color Palettes for good vision in diverse conditions
* Support smooth zoom, built-in stadiametric rangefinder and more
* Can connect external mobile power supply and more
